UniCon: A Unified System for Efficient Robot Learning Transfers

Yunfeng Lin , Li Xu , Yong Yu , Jiangmiao Pang , Weinan Zhang

Authors on Pith no claims yet

Pith reviewed 2026-05-16 12:56 UTC · model grok-4.3

classification 💻 cs.RO cs.SE

keywords robot learningsim-to-real transferunified frameworkcontrol middlewareexecution graphsdata-oriented designcross-platform deployment

0 comments

The pith

UniCon standardizes robot states and control flow into reusable graphs for efficient cross-platform transfers and sim-to-real deployment.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces UniCon as a lightweight framework to solve the difficulties of moving learning-based controllers between different robots that have varying hardware, interfaces, and middleware. It decomposes robot workflows into execution graphs that separate system states from control logic, allowing components to be reused without rewriting code for each new platform. The design uses batched and vectorized data handling to reduce communication overhead and improve inference speed compared with existing systems. This setup supports plug-and-play use across robot morphologies and enables transfers from simulation to real hardware with only small adjustments. Demonstrations on more than a dozen robot models from seven manufacturers show reduced code duplication and practical integration into active research.

Core claim

UniCon decomposes workflows into execution graphs with reusable components while separating system states from control logic, then routes data through batched vectorized flows to deliver lower inference latency and minimal re-engineering when moving learning controllers across heterogeneous robots or from simulation to real platforms.

What carries the argument

Execution graph decomposition that separates states from control logic and applies batched vectorized data flow to enable modular, efficient transfers.

If this is right

Reduces code redundancy when transferring workflows between different robot platforms.
Achieves higher inference efficiency than ROS-based systems through batched data handling.
Enables seamless sim-to-real transfer with minimal re-engineering of control components.
Supports deployment across over 12 robot models from 7 manufacturers without platform-specific rewrites.
Facilitates direct integration of the same workflows into ongoing research projects.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The modular graph structure could allow researchers to share individual reusable components across labs using different hardware.
Batched vectorized flows might generalize to reduce overhead in other robotics middleware beyond the current comparisons.
Minimal re-engineering could shorten the time needed to prototype learning controllers on new or custom robot designs.
Widespread adoption might create de-facto standard interfaces that lower barriers for sim-to-real validation studies.

Load-bearing premise

That standardizing states, control flow, and instrumentation across platforms can be done without losing critical performance or functionality unique to specific robot morphologies or manufacturers.

What would settle it

A side-by-side test in which transferring a learning controller to a new robot under UniCon requires more code changes or shows higher end-to-end latency than the same transfer under a ROS-based workflow.

Figures

Figures reproduced from arXiv: 2601.14617 by Jiangmiao Pang, Li Xu, Weinan Zhang, Yong Yu, Yunfeng Lin.

**Figure 1.** Figure 1: Representative use cases of UniCon: Left: synchronized and reusable locomotion across heterogeneous robots. Middle: Modular interoperation of RL policies with VR teleoperation. Right: Real-to-sim data recording and analysis for diagnosing transfer gaps. Data and control flow are standardized across platforms, reducing integration effort and improving efficiency. Abstract Deploying learning-based controller… view at source ↗

**Figure 2.** Figure 2: Architecture of UniCon: (a) global system states with switchable storage backends; (b) [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

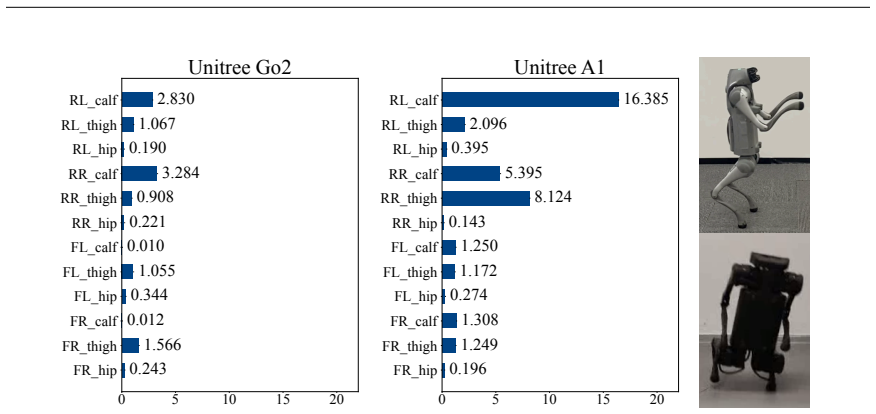

**Figure 3.** Figure 3: Real-to-sim analysis of inference trajectories. [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

read the original abstract

Deploying learning-based controllers across heterogeneous robots is challenging due to platform differences, inconsistent interfaces, and inefficient middleware. To address these issues, we present UniCon, a lightweight framework that standardizes states, control flow, and instrumentation across platforms. It decomposes workflows into execution graphs with reusable components, separating system states from control logic to enable plug-and-play deployment across various robot morphologies. Unlike traditional middleware, it prioritizes efficiency through batched, vectorized data flow, minimizing communication overhead and improving inference latency. This modular, data-oriented approach enables seamless sim-to-real transfer with minimal re-engineering. We demonstrate that UniCon reduces code redundancy when transferring workflows and achieves higher inference efficiency compared to ROS-based systems. Deployed on over 12 robot models from 7 manufacturers, it has been successfully integrated into ongoing research projects, proving its effectiveness in real-world scenarios.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

UniCon is a practical middleware layer that standardizes robot states and control flow for easier cross-platform transfers, with claimed efficiency gains over ROS and real deployments on 12+ models.

read the letter

UniCon standardizes states, control flow, and instrumentation so that learning-based controllers can move between robots or from sim to real with less re-engineering than usual middleware requires. The core idea is to decompose workflows into execution graphs that keep system states separate from control logic, then run them with batched vectorized data flow to cut overhead and latency. That design choice is the main thing the paper contributes, and it directly targets a recurring headache in robot learning labs. The authors report successful use on over 12 robot models from 7 manufacturers and integration into ongoing projects, which gives the work some grounding beyond the abstract. The modular, data-oriented approach looks coherent on its own terms and avoids the usual middleware bloat. Soft spots are mostly about missing detail in the high-level claims: the abstract asserts lower redundancy and better inference speed but does not show the actual numbers or baselines here, so the size of the improvement is hard to judge without the full text. The stress-test note indicates the full manuscript supplies enough architectural description to stay internally consistent, with no obvious contradictions or unsupported leaps. This paper is aimed at researchers who work with multiple robot platforms and want to spend less time rewriting interfaces. It is the kind of system paper that can save other groups time if the implementation holds up. I would send it to peer review because it offers a concrete, deployed solution to a known problem even if the quantitative evidence needs tightening.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces UniCon, a lightweight framework that standardizes states, control flow, and instrumentation across heterogeneous robot platforms via execution graphs with reusable components. It separates system states from control logic to support plug-and-play deployment, employs batched vectorized data flow to reduce communication overhead and inference latency, and claims seamless sim-to-real transfer with minimal re-engineering. The work reports deployment on over 12 robot models from 7 manufacturers and asserts reductions in code redundancy relative to ROS-based systems.

Significance. If the efficiency and modularity claims are substantiated, UniCon could meaningfully accelerate workflow transfer in robot learning by replacing ad-hoc middleware with a data-oriented, graph-based architecture. The reported breadth of deployment across manufacturers indicates practical utility for research groups working with mixed hardware, though the absence of quantitative benchmarks limits assessment of its advantage over established alternatives.

major comments (2)

[Abstract] Abstract: The assertions of reduced code redundancy and higher inference efficiency compared to ROS-based systems are stated without any quantitative metrics, latency measurements, code-size comparisons, or baseline tables. These load-bearing performance claims require supporting data to be evaluable.
[Deployment and Evaluation] Deployment description: The claim of successful integration on over 12 robot models lacks any error analysis, failure-mode reporting, or methodology details on how platform-specific performance was preserved after standardization. This gap directly affects the central claim of seamless transfer without loss of functionality.

minor comments (1)

[Abstract] The abstract would be clearer if it briefly quantified the reported efficiency gains (e.g., latency reduction factor) rather than using only qualitative descriptors.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive review. The comments highlight important areas where additional evidence and clarity will strengthen the manuscript. We address each major comment below and will incorporate the requested quantitative data and deployment details in the revised version.

read point-by-point responses

Referee: [Abstract] Abstract: The assertions of reduced code redundancy and higher inference efficiency compared to ROS-based systems are stated without any quantitative metrics, latency measurements, code-size comparisons, or baseline tables. These load-bearing performance claims require supporting data to be evaluable.

Authors: We agree that the performance claims in the abstract require supporting quantitative evidence to be fully evaluable. In the revised manuscript we will add a dedicated evaluation subsection containing latency measurements, code-size comparisons, and baseline tables against ROS-based implementations. These metrics will be derived from the existing deployment experiments and presented with clear methodology. revision: yes
Referee: [Deployment and Evaluation] Deployment description: The claim of successful integration on over 12 robot models lacks any error analysis, failure-mode reporting, or methodology details on how platform-specific performance was preserved after standardization. This gap directly affects the central claim of seamless transfer without loss of functionality.

Authors: We acknowledge that the current deployment description would benefit from more rigorous supporting analysis. In the revision we will expand the deployment section to include error analysis, documented failure modes, and explicit methodology describing how platform-specific performance characteristics were preserved after applying the standardized execution graphs. This will provide stronger substantiation for the seamless-transfer claim. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The manuscript presents a software framework for standardizing robot states, control flow, and data-oriented execution across platforms. No mathematical derivations, equations, fitted parameters, or predictions are described that could reduce to their own inputs by construction. Central claims rely on architectural design choices and reported deployments across 12 robot models, which are presented as empirical outcomes rather than self-referential or self-citation-dependent results. No load-bearing steps match the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the domain assumption that a lightweight standardization layer can be inserted without platform-specific losses; no free parameters or invented physical entities are introduced.

axioms (1)

domain assumption Standardization of states, control flow, and instrumentation is feasible and sufficient across heterogeneous robot platforms
Invoked to justify plug-and-play deployment and minimal re-engineering.

invented entities (1)

UniCon execution graphs no independent evidence
purpose: Decompose workflows into reusable components separating states from control logic
Core architectural construct introduced by the framework; no independent evidence outside the system itself.

pith-pipeline@v0.9.0 · 5449 in / 1193 out tokens · 56146 ms · 2026-05-16T12:56:34.763837+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

UniCon decomposes workflows into execution graphs with reusable components, separating system states from control logic... batched, vectorized data flow
IndisputableMonolith/Foundation/ArithmeticFromLogic.lean LogicNat recovery unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

global system states with switchable storage backends; modular control blocks... control flow graph primitives

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

24 extracted references · 24 canonical work pages · 3 internal anchors

[1]

Open robot control software: the orocos project.Proceedings 2001 ICRA

Herman Bruyninckx. Open robot control software: the orocos project.Proceedings 2001 ICRA. IEEE International Conference on Robotics and Automation (Cat. No.01CH37164), 3:2523–2528 vol.3,

work page 2001
[2]

8 Luigi Campanaro, Siddhant Gangapurwala, Wolfgang Merkt, and Ioannis Havoutis

URL https://api.semanticscholar.org/CorpusID: 5714366. 8 Luigi Campanaro, Siddhant Gangapurwala, Wolfgang Merkt, and Ioannis Havoutis. Learning and deploying robust locomotion policies with minimal dynamics randomization.arXiv preprint arXiv:2209.12878,

work page arXiv
[3]

Xuxin Cheng, Yandong Ji, Junming Chen, Ruihan Yang, Ge Yang, and Xiaolong Wang

URLhttps://github.com/stephane-caron/pink. Xuxin Cheng, Yandong Ji, Junming Chen, Ruihan Yang, Ge Yang, and Xiaolong Wang. Expressive whole-body control for humanoid robots.arXiv preprint arXiv:2402.16796, 2024a. Xuxin Cheng, Jialong Li, Shiqi Yang, Ge Yang, and Xiaolong Wang. Open-television: Teleoperation with immersive active visual feedback. InConfere...

work page arXiv
[4]

A survey of sim-to-real methods in rl: Progress, prospects and challenges with foundation models.arXiv preprint arXiv:2502.13187,

Longchao Da, Justin Turnau, Thirulogasankar Pranav Kutralingam, Alvaro Velasquez, Paulo Shakar- ian, and Hua Wei. A survey of sim-to-real methods in rl: Progress, prospects and challenges with foundation models.arXiv preprint arXiv:2502.13187,

work page arXiv
[5]

Adversarial motion priors make good substitutes for complex reward functions

Alejandro Escontrela, Xue Bin Peng, Wenhao Yu, Tingnan Zhang, Atil Iscen, Ken Goldberg, and Pieter Abbeel. Adversarial motion priors make good substitutes for complex reward functions. In 2022 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), pp. 25–32. IEEE,

work page 2022
[6]

Minimizing energy consumption leads to the emergence of gaits in legged robots.arXiv preprint arXiv:2111.01674,

Zipeng Fu, Ashish Kumar, Jitendra Malik, and Deepak Pathak. Minimizing energy consumption leads to the emergence of gaits in legged robots.arXiv preprint arXiv:2111.01674,

work page arXiv
[7]

Xinyang Gu, Yen-Jen Wang, Xiang Zhu, Chengming Shi, Yanjiang Guo, Yichen Liu, and Jianyu Chen

URLhttps://api.semanticscholar.org/CorpusID: 806182. Xinyang Gu, Yen-Jen Wang, Xiang Zhu, Chengming Shi, Yanjiang Guo, Yichen Liu, and Jianyu Chen. Advancing humanoid locomotion: Mastering challenging terrains with denoising world model learning.arXiv preprint arXiv:2408.14472,

work page arXiv
[8]

R., Millman, K

doi: 10.1038/s41586-020-2649-2. URL https://doi.org/10.1038/s41586-020-2649-2. Tairan He, Chong Zhang, Wenli Xiao, Guanqi He, Changliu Liu, and Guanya Shi. Agile but safe: Learning collision-free high-speed legged locomotion. InRobotics: Science and Systems (RSS),

work page doi:10.1038/s41586-020-2649-2
[9]

Asap: Aligning simulation and real-world physics for learning agile humanoid whole-body skills.arXiv preprint arXiv:2502.01143,

Tairan He, Jiawei Gao, Wenli Xiao, Yuanhang Zhang, Zi Wang, Jiashun Wang, Zhengyi Luo, Guanqi He, Nikhil Sobanbabu, Chaoyi Pan, Zeji Yi, Guannan Qu, Kris Kitani, Jessica Hodgins, Linxi "Jim" Fan, Yuke Zhu, Changliu Liu, and Guanya Shi. Asap: Aligning simulation and real-world physics for learning agile humanoid whole-body skills.arXiv preprint arXiv:2502.01143,

work page arXiv
[10]

Learning humanoid standing-up control across diverse postures.arXiv preprint arXiv:2502.08378,

Tao Huang, Junli Ren, Huayi Wang, Zirui Wang, Qingwei Ben, Muning Wen, Xiao Chen, Jianan Li, and Jiangmiao Pang. Learning humanoid standing-up control across diverse postures.arXiv preprint arXiv:2502.08378,

work page arXiv
[11]

Exbody2: Advanced expressive humanoid whole-body control.arXiv preprint arXiv:2412.13196,

Mazeyu Ji, Xuanbin Peng, Fangchen Liu, Jialong Li, Ge Yang, Xuxin Cheng, and Xiaolong Wang. Exbody2: Advanced expressive humanoid whole-body control.arXiv preprint arXiv:2412.13196,

work page arXiv
[12]

Nathan P

doi: 10.1109/CVPRW.2017.167. Nathan P. Koenig and Andrew Howard. Design and use paradigms for gazebo, an open-source multi-robot simulator.2004 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) (IEEE Cat. No.04CH37566), 3:2149–2154 vol.3,

work page doi:10.1109/cvprw.2017.167 2017
[13]

RMA: Rapid Motor Adaptation for Legged Robots

URL https://api. semanticscholar.org/CorpusID:206941306. 10 Ashish Kumar, Zipeng Fu, Deepak Pathak, and Jitendra Malik. Rma: Rapid motor adaptation for legged robots.arXiv preprint arXiv:2107.04034,

work page internal anchor Pith review arXiv
[14]

ISBN 9798350323658

IEEE. ISBN 9798350323658. doi: 10.1109/ICRA48891.2023.10160497. URLhttps: //ieeexplore.ieee.org/document/10160497/. Hang Lai, Jiahang Cao, Jiafeng Xu, Hongtao Wu, Yunfeng Lin, Tao Kong, Yong Yu, and Weinan Zhang. World model-based perception for visual legged locomotion.ArXiv, abs/2409.16784,

work page doi:10.1109/icra48891.2023.10160497 2023
[15]

Steven Macenski, Tully Foote, Brian Gerkey, Chris Lalancette, and William Woodall

doi: 10.1109/LRA.2023.3279614. Steven Macenski, Tully Foote, Brian Gerkey, Chris Lalancette, and William Woodall. Robot operating system 2: Design, architecture, and uses in the wild.Science Robotics, 7(66):eabm6074,

work page doi:10.1109/lra.2023.3279614 2023
[16]

Isaac Gym: High Performance GPU-Based Physics Simulation For Robot Learning

doi: 10.1126/scirobotics.abm6074. URL https://www.science.org/doi/abs/10.1126/scirobotics. abm6074. Viktor Makoviychuk, Lukasz Wawrzyniak, Yunrong Guo, Michelle Lu, Kier Storey, Miles Macklin, David Hoeller, N. Rudin, Arthur Allshire, Ankur Handa, and Gavriel State. Isaac gym: High performance gpu-based physics simulation for robot learning.ArXiv, abs/2108.10470,

work page internal anchor Pith review Pith/arXiv arXiv doi:10.1126/scirobotics.abm6074
[17]

Px4: A node-based multithreaded open source robotics framework for deeply embedded platforms.2015 IEEE International Conference on Robotics and Automation (ICRA), pp

Lorenz Meier, Dominik Honegger, and Marc Pollefeys. Px4: A node-based multithreaded open source robotics framework for deeply embedded platforms.2015 IEEE International Conference on Robotics and Automation (ICRA), pp. 6235–6240,

work page 2015
[18]

Solving Rubik's Cube with a Robot Hand

11 OpenAI, Ilge Akkaya, Marcin Andrychowicz, Maciek Chociej, Ma teusz Litwin, Bob McGrew, Arthur Petron, Alex Paino, Matthias Plappert, Glenn Powell, Raphael Ribas, Jonas Schneider, Nikolas A. Tezak, Jerry Tworek, Peter Welinder, Lilian Weng, Qiming Yuan, Wojciech Zaremba, and Lei M. Zhang. Solving rubik’s cube with a robot hand.ArXiv, abs/1910.07113,

work page internal anchor Pith review Pith/arXiv arXiv 1910
[19]

Yuzhe Qin, Wei Yang, Binghao Huang, Karl Van Wyk, Hao Su, Xiaolong Wang, Yu-Wei Chao, and Dieter Fox

URL https://www.eclipse.org/community/eclipse_ newsletter/2019/december/4.php. Yuzhe Qin, Wei Yang, Binghao Huang, Karl Van Wyk, Hao Su, Xiaolong Wang, Yu-Wei Chao, and Dieter Fox. Anyteleop: A general vision-based dexterous robot arm-hand teleoperation system. In Robotics: Science and Systems,

work page 2019
[20]

A walk in the park: Learning to walk in 20 minutes with model-free reinforcement learning.arXiv preprint arXiv:2208.07860,

Laura Smith, Ilya Kostrikov, and Sergey Levine. A walk in the park: Learning to walk in 20 minutes with model-free reinforcement learning.arXiv preprint arXiv:2208.07860,

work page arXiv
[21]

Mujoco: A physics engine for model-based control

Emanuel Todorov, Tom Erez, and Yuval Tassa. Mujoco: A physics engine for model-based control. 2012 IEEE/RSJ International Conference on Intelligent Robots and Systems, pp. 5026–5033,

work page 2012
[22]

Huayi Wang, Zirui Wang, Junli Ren, Qingwei Ben, Tao Huang, Weinan Zhang, and Jiangmiao Pang

URL https: //api.semanticscholar.org/CorpusID:14188093. Huayi Wang, Zirui Wang, Junli Ren, Qingwei Ben, Tao Huang, Weinan Zhang, and Jiangmiao Pang. Beamdojo: Learning agile humanoid locomotion on sparse footholds.arXiv preprint arXiv:2502.10363,

work page arXiv
[23]

Kevin Zakka, Baruch Tabanpour, Qiayuan Liao, Mustafa Haiderbhai, Samuel Holt, Jing Yuan Luo, Arthur Allshire, Erik Frey, Koushil Sreenath, Lueder A

URLhttps://arxiv.org/abs/2507.07356. Kevin Zakka, Baruch Tabanpour, Qiayuan Liao, Mustafa Haiderbhai, Samuel Holt, Jing Yuan Luo, Arthur Allshire, Erik Frey, Koushil Sreenath, Lueder A. Kahrs, Carlo Sferrazza, Yuval Tassa, and Pieter Abbeel. Mujoco playground: An open-source framework for gpu-accelerated robot learning and sim-to-real transfer.,

work page arXiv
[24]

Ziwen Zhuang, Zipeng Fu, Jianren Wang, Christopher Atkeson, Soeren Schwertfeger, Chelsea Finn, and Hang Zhao

URLhttps://github.com/HansZ8/RoboJuDo. Ziwen Zhuang, Zipeng Fu, Jianren Wang, Christopher Atkeson, Soeren Schwertfeger, Chelsea Finn, and Hang Zhao. Robot parkour learning.arXiv preprint arXiv:2309.05665,

work page arXiv
