arxiv: 2506.11991 · v3 · submitted 2025-06-13 · 💻 cs.CV · cs.AI· cs.CL

VGR: Visual Grounded Reasoning

Jiacong Wang , Zijian Kang , Haochen Wang , Haiyong Jiang , Jiawen Li , Bohong Wu , Ya Wang , Jiao Ran
show 3 more authors
Xiao Liang Chao Feng Jun Xiao
This is my paper

Pith reviewed 2026-05-19 09:08 UTC · model grok-4.3

classification 💻 cs.CV cs.AIcs.CL
keywords visual grounded reasoningmultimodal chain-of-thoughtfine-grained visual perceptionbounding box replayimage token efficiencySFT datasetmultimodal large language models
0
0 comments X p. Extension

The pith

VGR improves multimodal reasoning by first detecting and replaying relevant image regions rather than relying on language alone.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents VGR, a multimodal large language model designed for visual grounded reasoning. Traditional approaches to chain-of-thought reasoning in these models stay in language space, leading to bias and poor performance on tasks needing deep image details. VGR addresses this by first identifying relevant regions via bounding boxes and then replaying those regions during reasoning. This is supported by a new SFT dataset combining vision grounding with language deduction. The result is better understanding of complex visual tasks while using fewer image tokens.

Core claim

VGR is a novel reasoning MLLM that detects relevant regions to solve problems and provides precise answers based on replayed image regions. It uses a large-scale SFT dataset containing reasoning data with mixed vision grounding and language deduction. The inference pipeline allows the model to choose bounding boxes for visual reference, with a replay stage integrating the corresponding regions into the reasoning process to enhance multimodal comprehension.

What carries the argument

The inference pipeline that selects bounding boxes for visual reference and replays the corresponding image regions to enhance multimodal comprehension.

Load-bearing premise

That automatically detected bounding boxes and the subsequent replay stage will reliably supply the precise visual details needed without introducing selection errors or losing critical context.

What would settle it

A test case where critical visual information lies outside the automatically detected bounding boxes on an image, causing the model to produce incorrect answers despite correct language reasoning.

Figures

Figures reproduced from arXiv: 2506.11991 by Bohong Wu, Chao Feng, Haiyong Jiang, Haochen Wang, Jiacong Wang, Jiao Ran, Jiawen Li, Jun Xiao, Xiao Liang, Ya Wang, Zijian Kang.

Figure 1
Figure 1. Figure 1: Overview framework of our method. In the left of the image, we crop the original image [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Overview framework of our data pipeline. The blue arrow line indicates the cold-start data [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

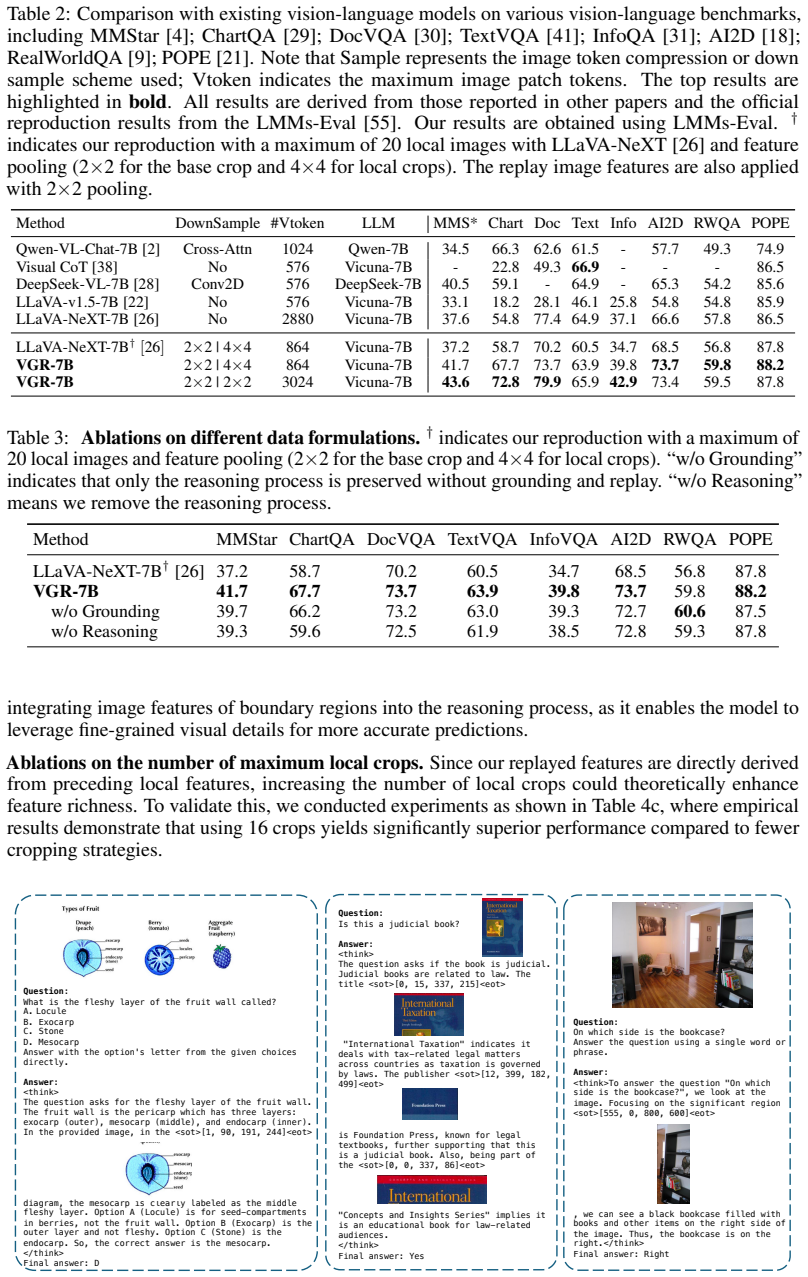

Figure 3. Figure 3: Example of training data in VGR-SFT. 7 [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

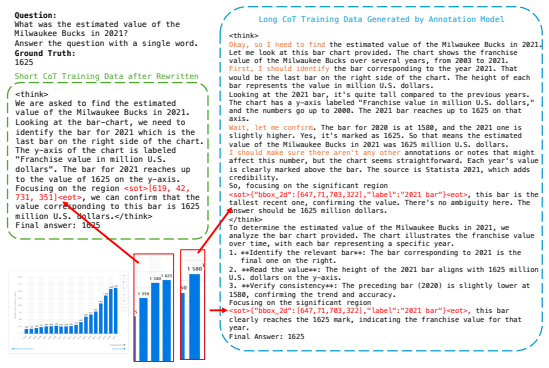

Figure 4. Figure 4: The right part of the figure contains an example generated by our annotation model. After [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Example of training data in VGR-SFT in different formulations. Reject Sampling. During the reject sampling, we implement two verification steps with online commercial model, which is Doubao1.5-VL [13] in our implementation. The prompts for remote requests are detailed in [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Example of data from original data, cold-start model, annotator and training set. [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗
Figure 7

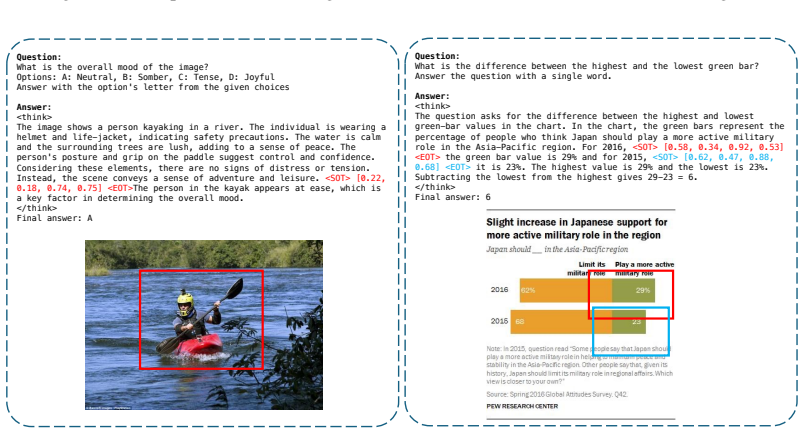

Figure 7. Figure 7: Example of VGR response in MMStar and ChartQA benchmarks. 16 [PITH_FULL_IMAGE:figures/full_fig_p016_7.png] view at source ↗
read the original abstract

In the field of multimodal chain-of-thought (CoT) reasoning, existing approaches predominantly rely on reasoning on pure language space, which inherently suffers from language bias and is largely confined to math or science domains. This narrow focus limits their ability to handle complex visual reasoning tasks that demand comprehensive understanding of image details. To address these limitations, this paper introduces VGR, a novel reasoning multimodal large language model (MLLM) with enhanced fine-grained visual perception capabilities. Unlike traditional MLLMs that answer the question or reasoning solely on the language space, our VGR first detects relevant regions that may help to solve problems, and then provides precise answers based on replayed image regions. To achieve this, we conduct a large-scale SFT dataset called VGR -SFT that contains reasoning data with mixed vision grounding and language deduction. The inference pipeline of VGR allows the model to choose bounding boxes for visual reference and a replay stage is introduced to integrates the corresponding regions into the reasoning process, enhancing multimodel comprehension. Experiments on the LLaVA-NeXT-7B baseline show that VGR achieves superior performance on multi-modal benchmarks requiring comprehensive image detail understanding. Compared to the baseline, VGR uses only 30\% of the image token count while delivering scores of +4.1 on MMStar, +7.1 on AI2D, and a +12.9 improvement on ChartQA.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces VGR, a multimodal LLM for visual grounded reasoning that first detects relevant image regions as bounding boxes and then replays those regions during inference to support fine-grained visual perception. It constructs a mixed VGR-SFT dataset of vision-grounding and language-deduction examples, trains on the LLaVA-NeXT-7B baseline, and reports that the resulting model outperforms the baseline on MMStar (+4.1), AI2D (+7.1), and ChartQA (+12.9) while using only 30% of the image tokens.

Significance. If the gains are shown to arise from the bounding-box selection and replay mechanism rather than dataset scale alone, the work would offer a practical route to token-efficient visual reasoning that mitigates language bias in multimodal CoT. The explicit separation of region detection from replayed visual context is a concrete architectural idea worth testing on detail-heavy benchmarks.

major comments (2)
  1. [Experiments] Experiments section: the headline improvements (+4.1 MMStar, +7.1 AI2D, +12.9 ChartQA) and 30% token reduction are reported without a control that fine-tunes the identical LLaVA-NeXT-7B baseline on the same VGR-SFT corpus but omits the bounding-box selection and region-replay pipeline. This ablation is required to isolate the contribution of the proposed mechanism from the effect of additional SFT data.
  2. [Abstract and Experiments] Abstract and §4 (experimental protocol): no description is given of how bounding boxes are obtained (model, threshold, post-processing), how the replay stage is implemented in the forward pass, or what statistical tests or variance estimates accompany the benchmark deltas.
minor comments (2)
  1. [Abstract] Abstract: 'multimodel comprehension' is a typo for 'multimodal comprehension'.
  2. [Abstract] Abstract: 'VGR -SFT' contains an extraneous space; standardize to 'VGR-SFT'.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We agree that an explicit ablation isolating the bounding-box and replay mechanism from the effects of additional SFT data, together with fuller implementation details, would strengthen the paper. We address each major comment below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Experiments] Experiments section: the headline improvements (+4.1 MMStar, +7.1 AI2D, +12.9 ChartQA) and 30% token reduction are reported without a control that fine-tunes the identical LLaVA-NeXT-7B baseline on the same VGR-SFT corpus but omits the bounding-box selection and region-replay pipeline. This ablation is required to isolate the contribution of the proposed mechanism from the effect of additional SFT data.

    Authors: We acknowledge that the reported gains could partly stem from the additional VGR-SFT data rather than the bounding-box selection and replay pipeline alone. To address this, we will add the requested control experiment in the revised manuscript: fine-tuning the identical LLaVA-NeXT-7B baseline on the same VGR-SFT corpus while disabling the region-detection and replay components. The results of this ablation will be included in the Experiments section to better isolate the contribution of the proposed mechanism. revision: yes

  2. Referee: [Abstract and Experiments] Abstract and §4 (experimental protocol): no description is given of how bounding boxes are obtained (model, threshold, post-processing), how the replay stage is implemented in the forward pass, or what statistical tests or variance estimates accompany the benchmark deltas.

    Authors: We agree that these implementation details are currently insufficient. In the revised manuscript we will expand §4 (and update the abstract where appropriate) to specify: (i) the model and procedure used to obtain bounding boxes, including any thresholds and post-processing; (ii) the exact implementation of the replay stage within the forward pass; and (iii) variance estimates or the number of evaluation runs for the reported benchmark deltas. If multiple runs were not performed, we will state this explicitly. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical pipeline with independent benchmark results

full rationale

The paper describes a new inference pipeline (region detection then replay) and a custom VGR-SFT dataset mixing vision-grounding and language data, then reports empirical gains on LLaVA-NeXT-7B. No equations, fitted parameters, or self-citations appear in the provided text that would make the +4.1 MMStar / +7.1 AI2D / +12.9 ChartQA improvements reduce to the training objective or dataset construction by definition. The central claims rest on experimental outcomes rather than tautological re-labeling of inputs.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard supervised fine-tuning assumptions plus the untested premise that region replay will improve visual comprehension without new failure modes.

free parameters (1)
  • Region selection and replay hyperparameters
    The model must learn or be tuned to output useful bounding boxes and to integrate the replayed patches; these are learned parameters whose values are not reported.
axioms (1)
  • domain assumption Visual region replay reduces language bias in multimodal reasoning
    Invoked in the motivation and method description as the core justification for the new pipeline.

pith-pipeline@v0.9.0 · 5810 in / 1180 out tokens · 39743 ms · 2026-05-19T09:08:06.793463+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Forward citations

Cited by 9 Pith papers

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. LAGO: Language-Guided Adaptive Object-Region Focus for Zero-Shot Visual-Text Alignment

    cs.CV 2026-05 unverdicted novelty 7.0

    LAGO achieves state-of-the-art zero-shot performance with fewer image regions by using class-agnostic object discovery followed by confidence-controlled language-guided refinement and dual-channel aggregation.

  2. Motion-o: Trajectory-Grounded Video Reasoning

    cs.CV 2026-03 conditional novelty 7.0

    Motion-o extends VLMs with Motion Chain of Thought (MCoT) using <motion/> tags and perturbation rewards to make object trajectories explicit and supervised in video reasoning.

  3. Vision-OPD: Learning to See Fine Details for Multimodal LLMs via On-Policy Self-Distillation

    cs.CV 2026-05 unverdicted novelty 6.0

    Vision-OPD uses on-policy self-distillation from crop-conditioned to full-image policies within the same MLLM to close the regional-to-global perception gap.

  4. Persistent Visual Memory: Sustaining Perception for Deep Generation in LVLMs

    cs.CV 2026-05 unverdicted novelty 6.0

    PVM adds a parallel branch to LVLMs that directly supplies visual embeddings to prevent attention decay over long generated sequences, yielding accuracy gains on reasoning tasks with minimal overhead.

  5. AdaTooler-V: Adaptive Tool-Use for Images and Videos

    cs.CV 2025-12 conditional novelty 6.0

    AdaTooler-V trains MLLMs to adaptively use vision tools via AT-GRPO reinforcement learning and new datasets, reaching 89.8% on V* and outperforming GPT-4o.

  6. DeepEyesV2: Toward Agentic Multimodal Model

    cs.CV 2025-11 unverdicted novelty 6.0

    DeepEyesV2 uses a two-stage cold-start plus reinforcement learning pipeline to produce an agentic multimodal model that adaptively invokes tools and outperforms direct RL on real-world reasoning benchmarks.

  7. Adaptive Chain-of-Focus Reasoning via Dynamic Visual Search and Zooming for Efficient VLMs

    cs.CV 2025-05 unverdicted novelty 6.0

    Chain-of-Focus enables VLMs to adaptively search and zoom on important image areas via a two-stage SFT and RL pipeline on a custom 3K-sample dataset, yielding 5% gains on the V* benchmark across resolutions from 224 to 4K.

  8. Perceptual Flow Network for Visually Grounded Reasoning

    cs.CV 2026-05 unverdicted novelty 5.0

    PFlowNet decouples perception from reasoning, integrates multi-dimensional rewards with vicinal geometric shaping via variational RL, and reports new SOTA results on V* Bench (90.6%) and MME-RealWorld-lite (67.0%).

  9. Persistent Visual Memory: Sustaining Perception for Deep Generation in LVLMs

    cs.CV 2026-05 unverdicted novelty 5.0

    PVM adds a parallel learnable branch to LVLMs that supplies visual embeddings on demand to structurally prevent attention decay and visual signal dilution during deep autoregressive generation.
