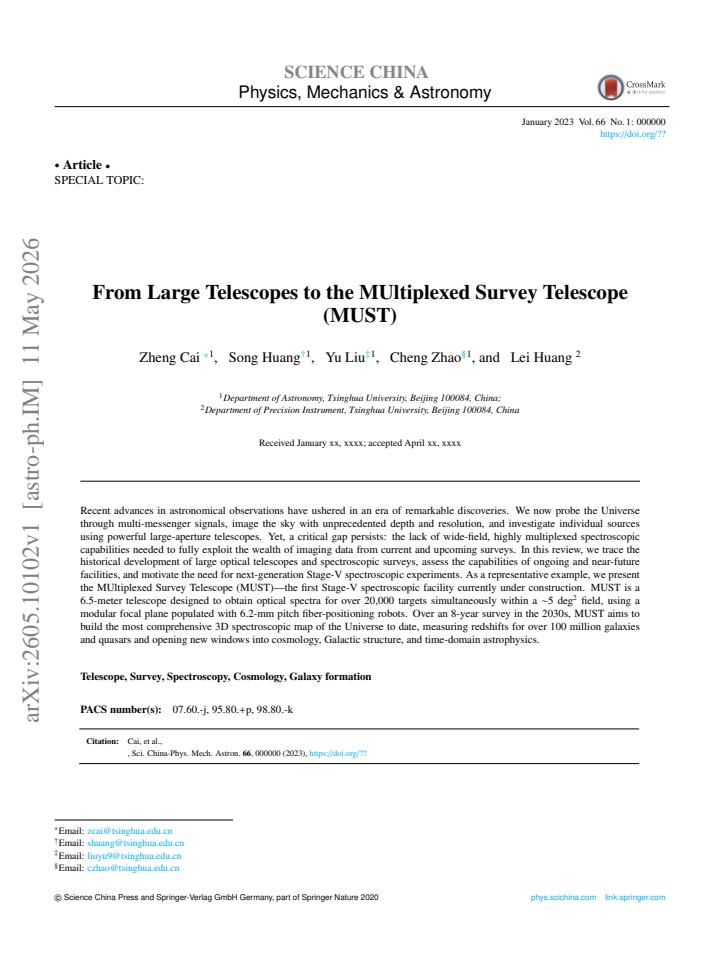

From Large Telescopes to the MUltiplexed Survey Telescope (MUST)
Pith reviewed 2026-05-12 03:37 UTC · model grok-4.3
The pith
A 6.5-meter telescope called MUST will capture spectra from over 20,000 targets at once to map redshifts for more than 100 million galaxies and quasars.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
MUST is a 6.5-meter telescope that obtains optical spectra for over 20,000 targets simultaneously within a ~5 deg² field by means of a modular focal plane populated with 6.2-mm pitch fiber-positioning robots; an eight-year survey in the 2030s is intended to measure redshifts for over 100 million galaxies and quasars, thereby producing the most comprehensive 3D spectroscopic map of the Universe to date.
What carries the argument
The modular focal plane populated with 6.2-mm pitch fiber-positioning robots, which places and aligns thousands of optical fibers to distinct targets at high density to achieve the required multiplexing.
If this is right
- The survey will supply the largest existing sample of galaxy redshifts for mapping large-scale structure and constraining dark energy.
- Stellar spectra from the same observations will allow detailed reconstruction of Milky Way dynamics and chemical evolution.
- Rapid follow-up spectra will characterize transients and variable sources discovered by wide-field imaging surveys.
- The resulting catalog will serve as a reference dataset for cross-correlating with multi-wavelength and multi-messenger observations.
- MUST data will test and refine models of galaxy formation and quasar evolution over a wide range of cosmic epochs.
Where Pith is reading between the lines
- If the fiber-robot technology proves reliable, it could be scaled to larger apertures or wider fields in subsequent facilities.
- The same modular design might allow rapid reconfiguration for specialized programs such as time-domain monitoring or targeted deep fields.
- Early science results from partial operations could reveal whether the achieved redshift completeness matches the design targets for faint objects.
- Integration with contemporaneous imaging surveys will be essential; any mismatch in sky coverage or depth would reduce the scientific yield of the combined datasets.
Load-bearing premise
The modular focal plane with 6.2-mm pitch fiber-positioning robots can be built, aligned, and operated at the required speed and accuracy to deliver the stated multiplexing and survey volume without major technical or scheduling setbacks.
What would settle it
A full-scale prototype focal-plane test that fails to position and acquire usable spectra from at least 15,000 targets simultaneously within the design field of view and cycle time.
read the original abstract
Recent advances in astronomical observations have ushered in an era of remarkable discoveries. We now probe the Universe through multi-messenger signals, image the sky with unprecedented depth and resolution, and investigate individual sources using powerful large-aperture telescopes. Yet, a critical gap persists: the lack of wide-field, highly multiplexed spectroscopic capabilities needed to fully exploit the wealth of imaging data from current and upcoming surveys. In this review, we trace the historical development of large optical telescopes and spectroscopic surveys, assess the capabilities of ongoing and near-future facilities, and motivate the need for next-generation Stage-V spectroscopic experiments. As a representative example, we present the MUltiplexed Survey Telescope (MUST), the first Stage-V spectroscopic facility currently under construction. MUST is a 6.5-meter telescope designed to obtain optical spectra for over 20,000 targets simultaneously within a $\sim$5 deg$^2$ field, using a modular focal plane populated with 6.2-mm pitch fiber-positioning robots. Over an 8-year survey in the 2030s, MUST aims to build the most comprehensive 3D spectroscopic map of the Universe to date, measuring redshifts for over 100 million galaxies and quasars and opening new windows into cosmology, Galactic structure, and time-domain astrophysics.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reviews the historical development of large optical telescopes and spectroscopic surveys, identifies a gap in wide-field highly multiplexed spectroscopy needed to exploit current imaging data, and presents the MUltiplexed Survey Telescope (MUST) as the first Stage-V facility under construction. MUST is described as a 6.5 m telescope with a modular focal plane using 6.2-mm pitch fiber-positioning robots to obtain spectra for over 20,000 targets simultaneously across a ~5 deg² field, with an 8-year survey in the 2030s targeting redshifts for over 100 million galaxies and quasars to create the most comprehensive 3D spectroscopic map of the Universe.
Significance. If the described design parameters are achieved, MUST would enable transformative advances in cosmology, Galactic structure, and time-domain astrophysics by delivering an unprecedented volume of spectroscopic data. The paper's clear historical context and explicit science motivation are strengths, providing a concrete vision for next-generation facilities; however, the significance remains prospective as the headline numbers are engineering targets rather than validated results.
major comments (2)
- [Abstract] Abstract: The central claim of measuring redshifts for over 100 million galaxies and quasars over an 8-year survey is load-bearing for the paper's motivation of MUST as the leading Stage-V facility, yet no supporting survey strategy, exposure-time calculations, or efficiency estimates are provided to substantiate this yield.
- [MUST design description] MUST design description: The multiplexing of over 20,000 simultaneous targets using 6.2-mm pitch fiber-positioning robots across the ~5 deg² field is presented as a key innovation, but the text contains no quantitative feasibility analysis, prototype references, alignment tolerances, or operational speed/error budget, which directly underpins the claimed performance.
minor comments (2)
- [historical review] The historical review section would benefit from explicit citations to key prior surveys (e.g., SDSS, DESI) when contrasting capabilities, to strengthen the gap analysis.
- Figure captions for any focal-plane or telescope layout diagrams should include scale bars and labeling of the modular robot units for clarity.
Simulated Author's Rebuttal
We thank the referee for their constructive review and positive assessment of the manuscript's historical context and science motivation. We address each major comment below and have incorporated revisions to strengthen the substantiation of the key claims while preserving the review-oriented scope of the paper.
read point-by-point responses
-
Referee: [Abstract] Abstract: The central claim of measuring redshifts for over 100 million galaxies and quasars over an 8-year survey is load-bearing for the paper's motivation of MUST as the leading Stage-V facility, yet no supporting survey strategy, exposure-time calculations, or efficiency estimates are provided to substantiate this yield.
Authors: We agree that the abstract states the target yield without explicit supporting calculations in the main text. This figure is a design goal derived from preliminary survey simulations incorporating the telescope's collecting area, field of view, fiber throughput, and typical exposure times for the targeted galaxy populations. As the manuscript is a high-level review, detailed calculations reside in supporting technical documents. In the revised version, we will add a concise paragraph in the MUST section summarizing the high-level survey strategy, including assumed exposure times, field revisit rates, and overall efficiency, with a reference to the underlying estimates. This will directly address the concern without expanding into a full technical appendix. revision: yes
-
Referee: [MUST design description] MUST design description: The multiplexing of over 20,000 simultaneous targets using 6.2-mm pitch fiber-positioning robots across the ~5 deg² field is presented as a key innovation, but the text contains no quantitative feasibility analysis, prototype references, alignment tolerances, or operational speed/error budget, which directly underpins the claimed performance.
Authors: The description is intentionally concise to emphasize the overall concept and science drivers rather than engineering specifics. The 6.2-mm pitch robots draw on demonstrated technology from prior fiber-positioning systems, with prototypes already tested for positioning precision and speed. To strengthen the presentation, the revised manuscript will include citations to the relevant prototype development papers and technical reports, along with a brief summary of key feasibility metrics such as alignment tolerances and operational error budgets. This addition will provide the requested quantitative context while remaining appropriate for the review format. revision: yes
Circularity Check
No significant circularity
full rationale
The manuscript is a review tracing telescope history and motivating a conceptual Stage-V facility. It states design parameters but contains no new derivations, data reductions, quantitative performance models, or equations. All headline numbers are forward-looking engineering targets. No self-citation load-bearing arguments, fitted inputs called predictions, or self-definitional steps exist. The derivation chain is empty, making the paper self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
M. Kaushik , A. Mattoo , and R. Rastogi , arXiv e-prints arXiv:2404.09143 (2024), arXiv: 2404.09143
-
[2]
B. P. Abbott , R. Abbott , T. D. Abbott et al., 116, 061102 (2016), arXiv: 1602.03837
work page internal anchor Pith review Pith/arXiv arXiv 2016
-
[3]
B. P. Abbott , R. Abbott , T. D. Abbott et al., 119, 161101 (2017), arXiv: 1710.05832
work page internal anchor Pith review Pith/arXiv arXiv 2017
-
[4]
B. P. Abbott , R. Abbott , T. D. Abbott et al., 848, L12 (2017), arXiv: 1710.05833
work page Pith review arXiv 2017
-
[5]
B. P. Abbott , R. Abbott , T. D. Abbott et al., 848, L13 (2017), arXiv: 1710.05834
work page Pith review arXiv 2017
-
[6]
M. Soares-Santos , D. E. Holz , J. Annis et al., 848, L16 (2017), arXiv: 1710.05459
- [7]
-
[8]
J. P. Gardner , J. C. Mather , M. Clampin et al., 123, 485 (2006), arXiv: astro-ph/0606175
work page Pith review arXiv 2006
-
[9]
P. Padovani and M. Cirasuolo , Contemporary Physics 64, 47 (2023), arXiv: 2312.04299
-
[10]
G. H. Sanders , Journal of Astrophysics and Astronomy 34, 81 (2013)
work page 2013
-
[11]
Thirty Meter Telescope Detailed Science Case: 2015,
W. Skidmore , TMT International Science Development Teams , and T. Science Advisory Committee , Research in Astronomy and Astrophysics 15, 1945 (2015), arXiv: 1505.01195
- [12]
-
[13]
G. Zhao , Y.-H. Zhao , Y.-Q. Chu , Y.-P. Jing , and L.-C. Deng , Research in Astronomy and Astrophysics 12, 723 (2012)
work page 2012
- [14]
-
[15]
M. Tegmark , M. R. Blanton , M. A. Strauss et al., 606, 702 (2004), arXiv: astro-ph/0310725
- [16]
-
[17]
1999, apj, 517, 565, doi: 10.1086/307221
S. Perlmutter , G. Aldering , G. Goldhaber et al., 517, 565 (1999), arXiv: astro-ph/9812133
work page internal anchor Pith review Pith/arXiv arXiv 1999
-
[18]
A. G. Riess , A. V. Filippenko , P. Challis et al., 116, 1009 (1998), arXiv: astro-ph/9805201
work page internal anchor Pith review Pith/arXiv arXiv 1998
- [19]
-
[20]
D. G. York , J. Adelman , J. E. Anderson , Jr. et al., 120, 1579 (2000), arXiv: astro-ph/0006396
work page Pith review arXiv 2000
- [21]
- [22]
-
[23]
The Dark Energy Survey: more than dark energy - an overview
Dark Energy Survey Collaboration , T. Abbott , F. B. Abdalla et al., 460, 1270 (2016), arXiv: 1601.00329
work page Pith review arXiv 2016
-
[24]
H. Aihara , N. Arimoto , R. Armstrong et al., 70, S4 (2018), arXiv: 1704.05858
-
[25]
J. T. A. de Jong , G. A. Verdoes Kleijn , K. H. Kuijken , and E. A. Valentijn , Experimental Astronomy 35, 25 (2013), arXiv: 1206.1254
work page Pith review arXiv 2013
-
[26]
J. T. A. de Jong , K. Kuijken , D. Applegate et al., The Messenger 154, 44 (2013)
work page 2013
-
[27]
Report of the Dark Energy Task Force
A. Albrecht , G. Bernstein , R. Cahn et al., arXiv e-prints astro-ph/0609591 (2006), arXiv: astro-ph/0609591
work page Pith review arXiv 2006
-
[28]
Euclid Definition Study Report
R. Laureijs , J. Amiaux , S. Arduini et al., arXiv e-prints arXiv:1110.3193 (2011), arXiv: 1110.3193
work page internal anchor Pith review Pith/arXiv arXiv 2011
-
[30]
2018, arXiv e-prints, arXiv:1809.01669
The LSST Dark Energy Science Collaboration , R. Mandelbaum , T. Eifler et al., arXiv e-prints arXiv:1809.01669 (2018), arXiv: 1809.01669
-
[31]
Z . Ivezi \'c , S. M. Kahn , J. A. Tyson et al., 873, 111 (2019), arXiv: 0805.2366
- [32]
-
[33]
Zhan , Scientia Sinica Physica, Mechanica & Astronomica 41, 1441 (2011)
H. Zhan , Scientia Sinica Physica, Mechanica & Astronomica 41, 1441 (2011)
work page 2011
- [34]
-
[35]
Wide-Field InfrarRed Survey Telescope-Astrophysics Focused Telescope Assets WFIRST-AFTA 2015 Report
D. Spergel , N. Gehrels , C. Baltay et al., arXiv e-prints arXiv:1503.03757 (2015), arXiv: 1503.03757
work page internal anchor Pith review Pith/arXiv arXiv 2015
-
[36]
The DESI Experiment Part I: Science,Targeting, and Survey Design
DESI Collaboration , A. Aghamousa , J. Aguilar et al., arXiv e-prints arXiv:1611.00036 (2016), arXiv: 1611.00036
work page internal anchor Pith review arXiv 2016
-
[37]
K. Gebhardt , E. Mentuch Cooper , R. Ciardullo et al., 923, 217 (2021), arXiv: 2110.04298
-
[38]
M. Takada , R. S. Ellis , M. Chiba et al., 66, R1 (2014), arXiv: 1206.0737
work page Pith review arXiv 2014
- [39]
-
[40]
Cosmology with the SPHEREX All-Sky Spectral Survey
O. Dor \'e , J. Bock , M. Ashby et al., arXiv e-prints arXiv:1412.4872 (2014), arXiv: 1412.4872
work page Pith review arXiv 2014
-
[41]
The DESI Experiment Part II: Instrument Design
DESI Collaboration , A. Aghamousa , J. Aguilar et al., arXiv e-prints arXiv:1611.00037 (2016), arXiv: 1611.00037
work page Pith review arXiv 2016
-
[42]
A. Dey , D. J. Schlegel , D. Lang et al., 157, 168 (2019), arXiv: 1804.08657
work page Pith review arXiv 2019
-
[43]
DESI Collaboration , B. Abareshi , J. Aguilar et al., 164, 207 (2022), arXiv: 2205.10939
-
[44]
R. S. de Jong , O. Bellido-Tirado , C. Chiappini et al., in Ground-based and Airborne Instrumentation for Astronomy IV, (edited by I. S. McLean , S. K. Ramsay , and H. Takami ), volume 8446 of Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, 84460T (2012), arXiv: 1206.6885
work page Pith review arXiv 2012
- [45]
-
[46]
C. Zhao , S. Huang , M. He et al., arXiv e-prints arXiv:2411.07970 (2024), arXiv: 2411.07970
work page internal anchor Pith review Pith/arXiv arXiv 2024
- [47]
-
[48]
2025, arXiv e-prints, arXiv:2503.07923, doi: 10.48550/arXiv.2503.07923
R. Besuner , A. Dey , A. Drlica-Wagner et al., arXiv e-prints arXiv:2503.07923 (2025), arXiv: 2503.07923
-
[49]
R. Ellis and K. Dawson , in Bulletin of the American Astronomical Society, volume 51, 45 (2019), arXiv: 1907.06797
-
[50]
V. Mainieri , R. I. Anderson , J. Brinchmann et al., arXiv e-prints arXiv:2403.05398 (2024), arXiv: 2403.05398
- [51]
-
[52]
I. S. McLean , Electronic Imaging in Astronomy: Detectors and Instrumentation (Second Edition) (2008)
work page 2008
-
[53]
J. E. Nelson, T. S. Mast, and S. M. Faber (1985), ://api.semanticscholar.org/CorpusID:107280967
work page 1985
- [55]
-
[56]
J. Cheng, in Principles and Design of Astronomical Telescopes: Radio, Infrared, Optical, X-ray, and Gamma-ray Telescopes, chapter 1, (China Science and Technology Press2003)
- [57]
-
[58]
B. Flaugher , H. T. Diehl , K. Honscheid et al., 150, 150 (2015), arXiv: 1504.02900
- [59]
- [60]
- [61]
-
[62]
S. Alam , M. Aubert , S. Avila et al., 103, 083533 (2021), arXiv: 2007.08991
-
[63]
Overview of the SDSS-IV MaNGA Survey: Mapping Nearby Galaxies at Apache Point Observatory
K. Bundy , M. A. Bershady , D. R. Law et al., 798, 7 (2015), arXiv: 1412.1482
work page Pith review arXiv 2015
-
[64]
M. Cirasuolo , J. Afonso , M. Carollo et al., in Ground-based and Airborne Instrumentation for Astronomy V, (edited by S. K. Ramsay , I. S. McLean , and H. Takami ), volume 9147 of Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, 91470N (2014)
work page 2014
-
[65]
M. Cirasuolo , A. Fairley , P. Rees et al., The Messenger 180, 10 (2020), arXiv: 2009.00628
-
[66]
G. Dalton , S. C. Trager , D. C. Abrams et al., in Ground-based and Airborne Instrumentation for Astronomy IV, (edited by I. S. McLean , S. K. Ramsay , and H. Takami ), volume 8446 of Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, 84460P (2012)
work page 2012
-
[67]
The DESI Experiment, a whitepaper for Snowmass 2013
M. Levi , C. Bebek , T. Beers et al., arXiv e-prints arXiv:1308.0847 (2013), arXiv: 1308.0847
work page Pith review arXiv 2013
- [68]
- [70]
-
[71]
N. Tamura , K. Yabe , S. Koshida et al., in Ground-based and Airborne Instrumentation for Astronomy X, (edited by J. J. Bryant , K. Motohara , and J. R. D. Vernet ), volume 13096 of Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, 1309605 (2024)
work page 2024
-
[72]
N. Tamura , N. Takato , A. Shimono et al., in Ground-based and Airborne Instrumentation for Astronomy VI, (edited by C. J. Evans , L. Simard , and H. Takami ), volume 9908 of Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, 99081M (2016), arXiv: 1608.01075
work page Pith review arXiv 2016
- [73]
- [74]
-
[75]
J. Najita , B. Willman , D. P. Finkbeiner et al., arXiv e-prints arXiv:1610.01661 (2016), arXiv: 1610.01661
- [76]
- [77]
-
[78]
The Eleventh and Twelfth Data Releases of the Sloan Digital Sky Survey: Final Data from SDSS-III
S. Alam , F. D. Albareti , C. Allende Prieto et al., 219, 12 (2015), arXiv: 1501.00963
work page Pith review arXiv 2015
-
[79]
S. Alam , M. Ata , S. Bailey et al., 470, 2617 (2017), arXiv: 1607.03155
work page Pith review arXiv 2017
- [80]
-
[81]
Euclid Collaboration , Y. Mellier , Abdurro'uf et al., 697, A1 (2025), arXiv: 2405.13491
-
[82]
DESI DR2 Results II: Measurements of Baryon Acoustic Oscillations and Cosmological Constraints
DESI Collaboration , M. Abdul-Karim , J. Aguilar et al., arXiv e-prints arXiv:2503.14738 (2025), arXiv: 2503.14738
work page internal anchor Pith review Pith/arXiv arXiv 2025
-
[83]
B. F. Schutz , 323, 310 (1986)
work page 1986
